PVC / WPC Plastic Crust Foam Board Processing Machine / Extruder

Get high-quality PVC/WPC Plastic Crust Foam Board Processing Machine from our factory. Our extruder is designed to meet all your production needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Application
  • Packaging & Shipping
  • Certifications
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
SJSZ80/156
Computerized
Computerized
Certification
CE, ISO9001:2008
Customized
Customized
Condition
New
Plastic Machine
WPC PVC Foam Board Making Machine
WPC PVC Foam Board
Width 1220mm
Board Thickness
3-25mm, 3-30mm, 3-45mm
Capacity
300-400kg/H
Motor
Siemens
PLC Control
Siemens
Frequency Inverter
ABB
Temperature Controller
Omron
Contactor
Schneider
Relay
Schneider
After Sale Service
Install Machines and Training
Application of WPC Foam Board
Board: Furniture Board or Building Template
Core Components
Motor, Pump, PLC, Pressure Vessel, Engine, Gearbox
Power (Kw)
75kw
Screw Material
38crmoala
Transport Package
Stretch Film and Wooden Box
Specification
CE
Trademark
DINGKUN
Origin
China
HS Code
8477209000
Production Capacity
15sets/Month

Product Description


WPC PVC Foam Board Extrusion Machine / PVC WPC foam board making machine for the kitchen cabinet / plastic extruder

1.We will provide the Feasibility Analysis Report for the wood-plastic project.
2.We will provide the model selection and technical parameter for wood-plastic machinery.
3.We will provide the design for the plant and electric power accounting for the facilities.
4.We will provide the design for wood-plastic formula according to the product requirements.
5.We will provide the technology of wood-plastic product surface treatment
6.We will provide technique training for operator.
7.We will provide solution for the practical problem during the production.
8.We will install and test the machine for free.
9.We will provide turnkey project to customers.


Product Description


WPC furniture board machine is applied to produce PVC foam board with width 1220mm to 1830mm, thickness 3mm to 40mm, and with very rigid surface, surface hardness can reach 55-80HRC, which are mostly used for advertising, cabinet, furniture board, consution template and so on.

WPC PVC foam board making machine is our featured product which can produce WPC PVC foam board.It is one kind of panel product which is used PVC resin, wood powder or (vegetable fibre) as the main materials, filled in Caco3, and added necessary lubrication, stabilize etc auxiliaries, after fully stirred heated and mixed, dispersed evenly by the high speed mixer, then heated and plasticized by the extruder and mould to form the panel.

It is widely used for building templates, industrial packing, furniture cabinet, outdoor landscapes material and indoor decoration and so on.


Work flow

PVC powder +additive → mixer →SJSZ series extruder →Coat-hanger type mould →Vacuum calibration cooling platform →cooling rollers and edge-cutting device →Haul off →stacker


Technical information

Description

Parameter

Feed material

PVC+ assistant materials(also can add wood powder

Product size

1220*2440*5-20mm

Production line speed

0.8-1.5m/min

Max. output

350-500kg/h

Outline size

25×2.5×3 L×W×H(m),unsaturated

Weight

16T

Total power

255kw

Actual energy consumption power

210kw

Main composition


No.
Part. Qty.
1 SJSZ80/156 Conical Double-screw Extruder 1set
2 Mould 1set
3 Calibration Forming Table 1set
4 Cooling Bracket 1set
5 Haul-off Unit 1set
6 Transverse Cutting Bracket 1set
7 Trim Cutting 1set
8 Stacker 1set

Auxiliary Machines for your choice

No. Part. Qty.
1 SHRL500/1000 Mixer 1set
2 SWP-400 Crusher 1set
3 SMP-500 Miller 1set
5 Water Chiller 1set
Detailed Photos

SJS80/156 Twin Screw Extruder

Machine Electrical part:ABB inverter,Siemens Motor,Siemens Contactor,,Electrical wire is CE export standard Motor 75kw SIEMENS ; Gear Box: JC Brand / DELING ; Screw& Barrel : Zhoushan
Control system : Siemens Screen touch control or RKC or OMRON table control.
PVC / WPC Plastic Crust Foam Board Processing Machine / Extruder

Mould

Brand name : JC times with 5 pre lips
Size :1320mm 1350mm 1100mm 1000mm ; Finished size :1220mm ;Thcikness :3-25mm, 3-30mm,3-40mm
PVC / WPC Plastic Crust Foam Board Processing Machine / Extruder
Vacuum Calibration platform
Max. calibrating width: 1450mm ; Calibrating table length:2000mm; Vacuum pump power:5.5kw*2 units ;
Max. exhausting volume:80m3/min ; Water pump power:4kw
PVC / WPC Plastic Crust Foam Board Processing Machine / Extruder

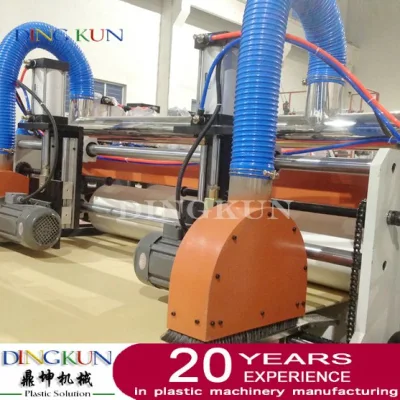

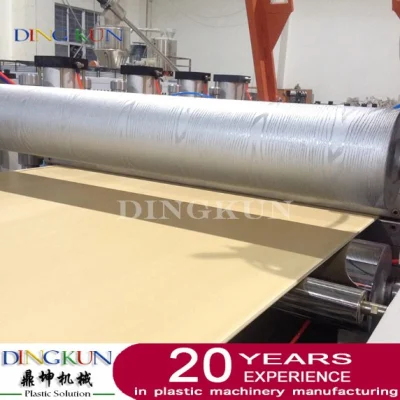

Eight Pairs Rubber Rollers Traction Machine With Trimming Unit And Dust Collector
Max. pulling width:1450mm ; Max pulling thickness:20mm
Pair roller qty: 8 pairs ; Driven motor power:5.5kw
PVC / WPC Plastic Crust Foam Board Processing Machine / Extruder

PVC / WPC Plastic Crust Foam Board Processing Machine / Extruder
Cutter Unit
Rack type synchronize pressing unit
Special design flat cutting motor: 3kW ; With non-pole cylinder left and right moving system
Cutter motor brand:Siemens ; Cut thickness :3-40mm
PVC / WPC Plastic Crust Foam Board Processing Machine / ExtruderAutomatic Discharge
PVC / WPC Plastic Crust Foam Board Processing Machine / Extruder
Application
PVC / WPC Plastic Crust Foam Board Processing Machine / Extruder
Packaging & Shipping

PVC / WPC Plastic Crust Foam Board Processing Machine / Extruder



Certifications



PVC / WPC Plastic Crust Foam Board Processing Machine / Extruder
Company Profile


PVC / WPC Plastic Crust Foam Board Processing Machine / ExtruderPVC / WPC Plastic Crust Foam Board Processing Machine / Extruder

FAQ

1. Quality Control Management

Q: Is there quality control on all production lines?

A: Yes, all production lines have adequate quality control

Q: Do the QA/QC inspectors work independently from the production line?

A: Yes

Q:How many QA/QC inspectors in total?

A: 4

Q: Number. of Employees in Each Production Line

A: Supervisor 1 ; No. of Operators 29 ;No. of In-line QC/QA 2

2.Supplier Management

Q:Does the company have a supplier assessment procedure?
A:Yes
Q:Does the company have an updated list of approved suppliers?
A:Yes
Q:Does the company establish and implement a standard procedure for purchasing contract review and approval?
A:Yes, with written standard procedures
Q:Does the company keep its supplier assessment reports?
A:Yes, with written standard procedures
Q:Does the company keep its supplier assessment reports?
A:Yes, assessment reports are available for the last 1-3 years
Q:Are the company's purchasing documents sufficient to ensure product safety control and their customers' requirements?
A:Yes, the purchasing document includes all the information required
Q:Is there a procedure to conduct random product inspections after final packaging?
A:Yes, with clear standard and written inspection records

Now we have machines in stock,sincerely invite you to vist our factory! Also you can contact me for machine's running video.
