Modelo Bfxq-3 Foam Contour Horizontal Cutting Machine

Get precise foam cutting with the Modelo Bfxq-3 Foam Contour Horizontal Cutting Machine. As a factory, we ensure top-quality equipment for your business needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
BFXQ-3
Saw Blade Diameter
48mm
Power(W)
5kw
Applicable Industries
Manufacturing Plant
Voltage
AC 380V
After-Sales Service Provided
Video Technical Support, Free Spare Parts
Dimensions
0.5mm*3mm*2300mm
Cutting Precision
±0.5mm
Width of The Foam Block
2200mm
Certification
CE\SGS
Rated Power
5kw
Transport Package
Wooden Case for 5kw AC Oscillating Knife Manual Fo
Trademark
BCD
Origin
Jiangsu, China

Product Description

5KW AC oscillating knife manual foam cutting press machine

Product Description

Length of the foam block

2200mm
2300mm

Height of the foam block

1250mm
1500mm

Width of the foam block

2200mm
2300mm
Work table
Rotating work table
AC power
380V 3phase 4 wire
Total power
5KW
Cutting precision
±0.5mm
Cutlery
-Pressure of the knife is 6 bar
-Itinery of the knife is 48mm50Hz
-Size of the knife is 0.5mm*3mm*2300mm
-Vibrating speed is 3000t/minute
Operatiing option
-modulator demodulator(can do remote diagnosis and maintenance)
-man controlled rotating work table
-automatic programming software
-computer console
-Absolute value of the system
- Automatic adjusting the angle
-Hanging control panel (optional)
Max cutting speed

Depending on different materials, the max cutting speed is  15m/minute

Delivery date

   25Days After receipt of prepayment.



Application area:
This foam cutter machine can cleanly cutting any ideal geometric profile.  It can be used in Automotive industry, Furniture industry, Packing industry, Building industry, Daily commodity and so on.

Cutting material:
Foam,PU soft foam,sticky foam,latex,Rebond foam, Polyethylene foam.

Performance overview:
The automation of this equipment is highly , it is able to complete some of the basic cutting requirements,The Rotate worktable can rotate without limit .

Cutting graphics:

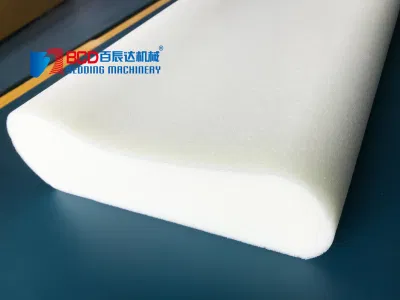

It is suitable for cutting block product ;it can cutting Pyramid-shaped with the rotate worktable;wavilness;irregular shape ;and any two dimensions and the simple three dimensions geometric profile .

It can cleanly cutting any ideal geometric profile. It can be used in Automotive industry, Furniture industry, Packing industry, Building industry, Daily commodity and so on.
