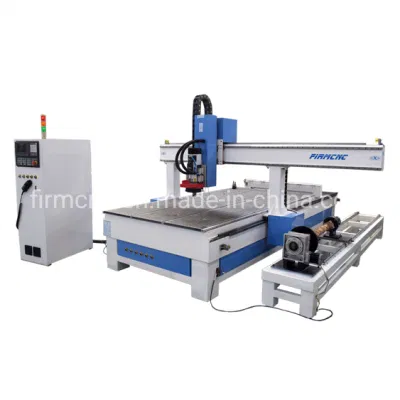

Jinan 3D Wood Sofa Chair Table Leg Carving Automatic CNC Wood Router 4 Axis Atc CNC Router

Looking for a reliable 4 axis ATC CNC router for carving wood sofa chair table legs? Our factory offers the Jinan 3D Wood Sofa Chair Table Leg Carving Automatic CNC Wood Router. Get precision and efficiency for your woodworking projects.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Our Advantages
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
FM1530
Certification
CE, ISO, FDA
Customized
Customized
Condition
New
Color
Customized
After-sales Service
Provide
Spindle Power
9.0kw Atc Air Cooling Spindle
Motor Driver
Yaskawa Servo Motor and Drivers
X, Y Structure
Rack and Pinion Drive, Hiwin Square Rail
Z Structure
Hiwin Square Rail and Ball Screw
Control System
Nk280/ Syntec Controller
Inverter
Taiwan Delta Inverter
Table Surface
Vacuum and T-Slot Table
Frame
Welded Steel Tube Structure
Working Voltage
AC380V, 50/60Hz, 3pH
Command Language
G Code
Working Speed
15-25m/ Min
Transport Package
Standard Export Package-Plywood
Specification
3000*1500*400mm
Trademark
FIRMCNC
Origin
Jinan, China
HS Code
8465990000
Production Capacity
100 Sets/Month

Product Description

Jinan 3d Wood Sofa Chair Table Leg Carving Automatic CNC Wood Router 4 Axis ATC CNC Router
Product Description

4 Axis CNC Router Standard Configuration

1.Working size: 3000*1500*400mm,spindle swing:+180°
2.Taiwan SYNTEC control system
3.Italy HSD 9.0KW air cooling spindle
4.Rotate head for spindle rotary
5.Japan YASKAWA servo driver and motor
6.Taiwan HIWIN linear guide
7.Helical rack and pinion for X,Y,TBI ball screw for Z axis
8.Japan Shimpo reducer for X,Y Axis
9.T slot vacuum table
10.Working voltage:380V,3PH/220V,3PH 50HZ/60HZ
Jinan 3D Wood Sofa Chair Table Leg Carving Automatic CNC Wood Router 4 Axis Atc CNC RouterJinan 3D Wood Sofa Chair Table Leg Carving Automatic CNC Wood Router 4 Axis Atc CNC Router4 Axis CNC Router Top quality components
1). The machine's body is strong, high-precision, reliable and durable.
2). Imported high precision ball screw, which moving smoothly, to ensure the machine's high   precision .
3). Well-known HSD Auto Tools Changer spindle, strong cutting ability, low noise, to ensure the  machine working for long time.
4). High-performance driven motor to ensure the machine's high speed and accuracy.
5). Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages
6). Auto lubrication system and separated control system, easy to operate.
7). Perfect design, top quality accessories, to minimize the machine's failure rate.
Jinan 3D Wood Sofa Chair Table Leg Carving Automatic CNC Wood Router 4 Axis Atc CNC Router
4 Axis CNC Router Technical Specification:
4 AXIS CNC ROUTER
Model  FM1325-4 Axis FM1530-4 Axis FM2030-4 Axis FM2040-4 Axis
Working area 1300* 2500 3000* 1500mm 3000 *2000mm 4000 *2000mm
Z axis height 400mm, 500mm, 600mm, 1000mm optional
X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
X,Y,Z Repositioning Accuracy ±0.03mm
Table surface Vacuum Combined T-slot
Frame Big steel tube structure
Control system  Weihong NK260/ 280 controller or Taiwan Syntec control system
Spindle Power 9.0KW HSD air cooled spindle
spindle rotating speed 24000r/min

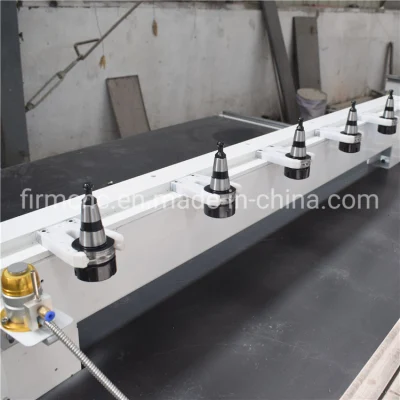

Tool type Linear type 6tools or 8tools
Guide rail HIWIN square guide rail
Motor  AC Yaskawa servo motor/ Pneumatic
Max. Power Consumption (Without Spindle) 4.5Kw
Max. Rapid Travel Rate 50000mm/min
Max. Working Speed 30000mm/min
working voltage AC380V/3PH/50HZ
Command Language G Code
Computer Interface USB
Operational System Software Type 3/Artcam
Gross Weight / Net Weight 2400KG / 2200KG
Our Advantages

4 Axis CNC Router Advantage

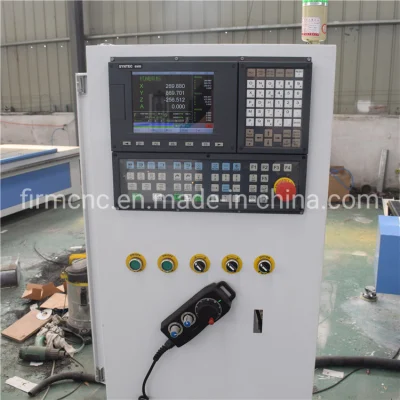

#Controller:
Syntec controller system
1.With separate control board,easy and convient to operate.
2.More than 20 years experience on cnc,with mature technology
Jinan 3D Wood Sofa Chair Table Leg Carving Automatic CNC Wood Router 4 Axis Atc CNC Router#Spindle:
Italy 9.0kw Spindle
1.Change tool automatically,save time and labor.
2.Strong power and long lifetime.the rotate speed max to 24000rpm

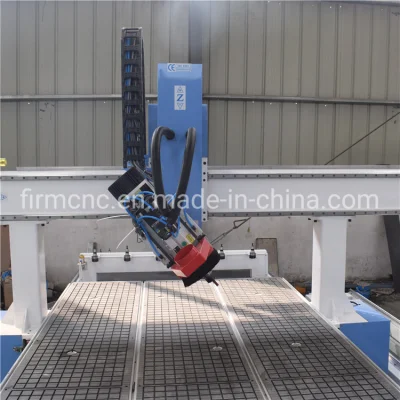

Jinan 3D Wood Sofa Chair Table Leg Carving Automatic CNC Wood Router 4 Axis Atc CNC Router#Rotate head:
Rotate head
1.Make spindle rotate at C axis to 180°,suitable for side drilling and cutting
#Servo system:
Japan YASKAWA Servo driver and motor
Optional Panasonic servo motor
Jinan 3D Wood Sofa Chair Table Leg Carving Automatic CNC Wood Router 4 Axis Atc CNC Router#Reducer:
Japan Shimpo Reducer
The world best reducer brand.Used for replace traditional rack and belt,to make machine more powerful and stable
#Tool sensor :
Auto tool Calibration

Optional
#Airtech pro dust collector: our new deaign to vacuum, and it is very clean to absorb wood dust.
#Vacuum pump: Oil free pump 5.5Kw/Air pump 5.5Kw
#CAM Software: VCarve/VCarve Pro/ArtCAM/UcanCAM,etc.
#CW3000 water chiller: dedicated to water-cooled spindles
#Other details parts, such as servo motor and drivers
Jinan 3D Wood Sofa Chair Table Leg Carving Automatic CNC Wood Router 4 Axis Atc CNC Router

4 Axis CNC Router Appliation industry and materials
1) Mold: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

4 Axis CNC Router Samples
Jinan 3D Wood Sofa Chair Table Leg Carving Automatic CNC Wood Router 4 Axis Atc CNC Router
Company Profile

Jinan FIRMCNC Equipment Co.,Ltd is situated in Jinan city, Shandong province, we have devoted to cnc router industry more than 18 years,with strong technical strength and perfect service network in industrial,it provides one-stop solution of cnc wood router processing equipments,services and customized application for different requirements.our machines obtained humanity design,advanced technology, rich cnc router solutions,better users experience and European standard etc.

Our products including cnc wood router, wood lathe, wood cutting machine, cnc lathe, mould cnc milling machine, fiber laser cutting machine, co2 laser machine, laser marking marking machine, plasma cutting machine, edge banding machine, sliding saw table etc.

Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular
among multi industries, and clients covering almost all the Countries who doing importing and exporting business.

Jinan 3D Wood Sofa Chair Table Leg Carving Automatic CNC Wood Router 4 Axis Atc CNC Router
Jinan 3D Wood Sofa Chair Table Leg Carving Automatic CNC Wood Router 4 Axis Atc CNC RouterOther type wood cnc router machines for your refence
# Linear or Circular type ATC wood cnc router
# Pneumatic 4 head ATC cnc router
# Wood cnc router with air cooling spindle
# Wood cnc router with water cooling spindle
# Mini cnc router for wood advertising
# Double heads wood cnc router

Perfect after Services
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
We would provide English Version working manual.

If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is two years.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
Jinan 3D Wood Sofa Chair Table Leg Carving Automatic CNC Wood Router 4 Axis Atc CNC Router
4 Axis CNC Router Packing & shipment:

Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package
Below: Steel Tube

1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information

Jinan 3D Wood Sofa Chair Table Leg Carving Automatic CNC Wood Router 4 Axis Atc CNC Router
FAQ

Q1: How can I get the best machine for me?

You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our years of experience.

Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it,  we can talk by phone, video call ,email or other contact ways.

Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use", and we provide engineers available to service machinery overseas.

Q4: This model is not suitable for me, do you have more models available?
Yes, we can supply many models. such as advertising cnc router, metal cnc router, wood cnc router, stone cnc router and so on.
Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!

Q5:What's the guarantee, in case the machine breaks down?
The machine has 2 years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.

Q6:How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

Q7:How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

Q8:How's the payment?
We provide L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal payments for offline orders and online orders
