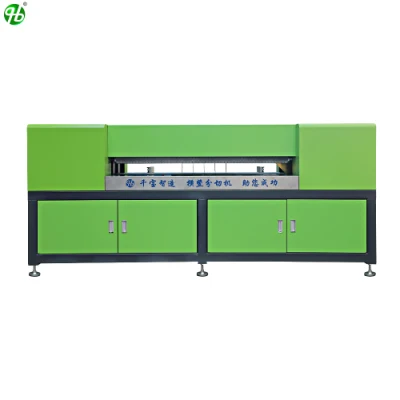

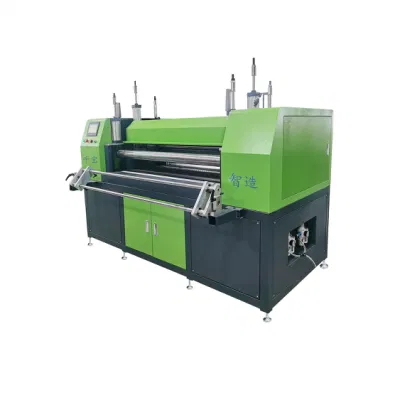

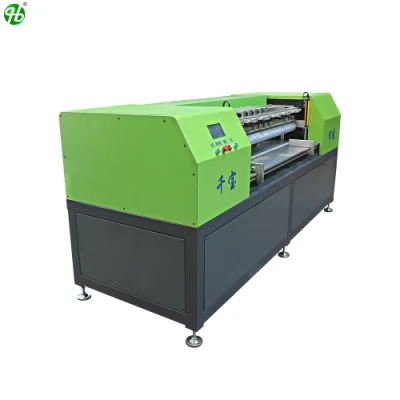

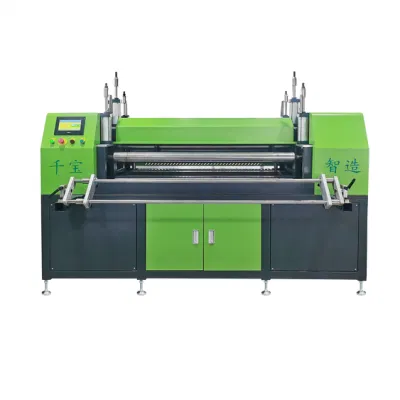

Expanded Polyethylene Foam Rolls CNC Vertical Horizontal Slitter Cutting Machine

Get precise and efficient cutting of Expanded Polyethylene Foam Rolls with our CNC Vertical Horizontal Slitter Cutting Machine. Factory-direct quality." Note: The product name "Expanded Polyethylene Foam Rolls CNC Vertical Horizontal Slitter Cutting Machine" seems to be very specific and could be simplified for better SEO.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • Our Advantages
  • Product Description
  • Packaging & Shipping
  • Certifications
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
QB125-Slitter
Membrane Material
EPE PE Clpe Foam Rolls Planks Sheets
Plastic Film Mulching Modes
Hot Laminating
Performance
Foam Insert Siliting Machine
Machine Name
Vertical & Horizontal Slitting Machine
Model
Qb125-Slitter
Machine Dimension(mm)
2760*1250*1380(L*W*H)
Max Bonding Thickness(mm)
100
Minimum Bonding Thickness
2
Wide Application
EPE PE XLPE Foam Rolls/Sheets
Customization
Acceptable
Operator Required
1 Person
Speed
60m/Min
Operation
Full CNC, Easy to Operate
Negotiable Price
Yes
Transport Package
Wooden Case
Specification
2760*1250*1380(L*W*H)
Trademark
QB
Origin
Guangzhou, China
HS Code
8477800000
Production Capacity
500 Sets/Month

Product Description

Expanded Polyethylene Foam Rolls CNC Vertical Horizontal Slitter Cutting Machine

Product Parameters

Vertical & Horizontal Slitting Machine can cut PE, XPE, XLPE, EPE Foamm Rolls or Sheets or Planks to the desired size in a matter of seconds, with automatic Feeder.

Vertical & Hoizontal Slitting Machine
Model Machine Size(L*W*H)(mm) Cutting Width (mm) Cuting Length (mm) Cuting Thickness (mm)
QB150-Slitter 3010*1250*1380 60-1500 20mm-limitless 2-100
QB125-Slitter 2760*1250*1380 60-1250 20mm-limitless 2-100

Our Advantages

Features:

1. Blades: There is 8 cutting blades in vertical direction, 1 cutting blades in horizontal direction. More blades can be added. Cutting blades is adjustable and it's easy to adjust.
2. Wide Applications: Compatible with most of foam products such as PE, EPE, XLPE, XPE
3. High accuracy: the tolerance is only +-1mm
4. Easy set up: only key in the dimensions of the blocks
5.
Fully Automatic: the machine with automatic feeding device, it can feed material automatically
6. Simple Operation:  All parameters are set through a PLC touch screen on the machine.  And only the material thickness and target cutting length need to be set.  After setting parameters, then press start, the machine will start to cutting.


Expanded Polyethylene Foam Rolls CNC Vertical Horizontal Slitter Cutting MachineExpanded Polyethylene Foam Rolls CNC Vertical Horizontal Slitter Cutting MachineExpanded Polyethylene Foam Rolls CNC Vertical Horizontal Slitter Cutting Machine
Expanded Polyethylene Foam Rolls CNC Vertical Horizontal Slitter Cutting Machine


Product Description

Our Machine can help you:

Expanded Polyethylene Foam Rolls CNC Vertical Horizontal Slitter Cutting Machine


Packaging & Shipping

About the packing and shipment: The Machine will be packed in the wooden box for the safe delivery.

Expanded Polyethylene Foam Rolls CNC Vertical Horizontal Slitter Cutting Machine

Expanded Polyethylene Foam Rolls CNC Vertical Horizontal Slitter Cutting Machine


Certifications

Our CE Certification:

Expanded Polyethylene Foam Rolls CNC Vertical Horizontal Slitter Cutting Machine

Company Profile

About our company:

Established in 2013, Guangzhou Qianbao Machinery Industry Co., Ltd specializes in developing and manufacturing automated foam packageinf machines arround the entire fabrication process. Qianbao owns more than 5000 square meters of production plants in Guangzhou. We have our own independent R & D department, more than 100 experienced technicians and professional team for sales and after-sale service.

After 3 years continuous R & D, Qianbao invented the First EPE Hot Air Bonding Machine in 2016. Qianbao is the first company who adopt hot air theory to produce the bonding machine which can perfectly bond different soft raw materials together: EPE, EVA, XPE, IXPE, EPP, EPS etc.

As our machine can perfectly solve laminating problem, reduce labor cost, save raw material cost and improve productivity, Qianbao machine soon become customers' favorite machine. Until 2018, Qianbao Hot Air Laminating Machine already took up around 85% market share in China. Right now Qianbao mainly exports machine to these countries: America, Brazil, Mexico, India, Vietnam, Malaysia, Russia etc.


Expanded Polyethylene Foam Rolls CNC Vertical Horizontal Slitter Cutting Machine
Expanded Polyethylene Foam Rolls CNC Vertical Horizontal Slitter Cutting Machine
Expanded Polyethylene Foam Rolls CNC Vertical Horizontal Slitter Cutting Machine
Expanded Polyethylene Foam Rolls CNC Vertical Horizontal Slitter Cutting Machine


FAQ

FAQ

1. Is this machine made by your own company?

Yes, all machines we supply are developped and manufactured by our own company. We own the patent. You can come visit our factory in Guangzhou and test the machine yourself.

2. What's the maximum cutting thickness?

Our EPE foam slitting machine can cut maximum 100mm height foam sheets each time.

3. How your machine maintain high accuracy?

Our EPE foam slitting machine is equipped with 6 servo motor and can cut EPE foam sheets accurately in each vertical and horizontal side.
