Introducing the CNC Cutter Machine, perfect for precise cutting of materials. Our factory offers high-quality cutting machines for various applications. Upgrade your production process today.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SCA3+
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Cardboard
Max Cutting Speed
960mm/S
Max Cutting Force
750g
Maximum Sheet Size
A3+,483*330mm
Maximum Cutting Size
475mm*320mm
Maximum Paper Weight
350g
Cutting Control System
Digital Servo Motor
Positioning Sensor Type
Digita Camera (CCD)
Cutting Media Types
Self-Adhesive Sticker, Vinyl, Wrap etc.
Actual Dimensions
655mm*494mm*335mm
Package Dimensions
850mm*700mm*550mm
Gw/Nw
35kg/50kg
Mechanical Resolution
0.02mm
Power
150W
Certification
CE, SGS, RoHS, Is09001
Transport Package
Wooden Package
Specification
655mm*494mm*335mm
Trademark
saga
Origin
Hefei China
HS Code
84411000
Production Capacity
10000PCS

Product Description

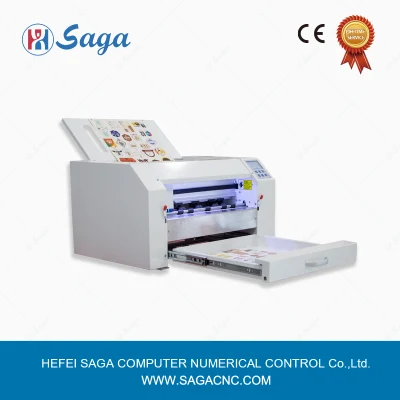

Automatic high quality sheet cutter to cut stickers


The latest Saga Sheet Auto Feeding Cutter has been upgraded with CCD Camera which allows the

machine to read QR code for registration and it increases the scanning speed by 100%+.

1. The maximum cutting area is A3+ (483mmX330mm),catering to market demands perfectly

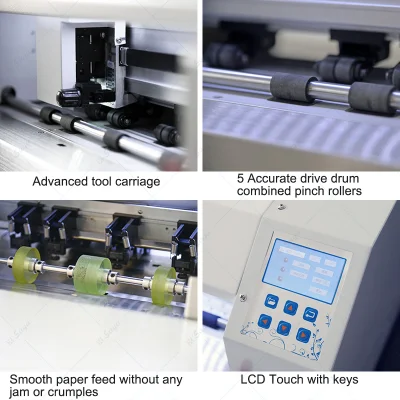

2. Optimized auto feeding system, more efficiency and no jam
3.The Interoperable Multi-sensor guarantees excellent cutting results

4.Optimized sheet marking maximized the sheet utilization



Model Name SG-SC A3+
Cutting control system Digital Servo motor
Positioning sensor type Optical Sensor
Scanning code type  Bar code
Sheet feeding Up to 100 pcs denpends on thickness of the paper
Sheet feeding method Friction feed
Scanning speed 5-30s
Maximum sheet size 483mm×330mm
Maximum cutting size 475×320mm
Minimum cutting character About 5mm2
Maximum actual cutting speed 960mm/s
Maximum cutting force 750g
Maximum paper weight 350g
Control panel LCD Touch with keys
Mechanical resolution 0.02mm
Programmable resolution HGPL 0.025mm
Package dimensions 850mm×700mm×550mm
Actual dimensions 655mm×494mm×335mm
Net/Gross weight 35KG/50KG
Tools Single tool holder,with one blade and one pen
Software and compatibility
Software and compatibility

SignMasterTM Pro, PC only, compatible for Windows7,8,10 (USB interfaces )

Corel Draw/Illustrator Plug in, PC only(SD interfaces)
Power and working environment requirements
Voltages 100V~240V 50/60Hz
Power  150W
Operation environment Temperature +5ºC to +35ºC(Fahreheit 41-95),Humility 30%-75%(Non-condensing)

This parameter is subject to change without prior notice. The company reserves the right of final interpretation
