3D Atc CNC Router Machine for Wood Door Carving Woodworking Advertising Making Furniture Designs Foam PVC MDF Cutting 4 Axis Acrylic Metal Carving Machinery

Factory Direct 3D Atc CNC Router Machine for Wood Door Carving Woodworking Advertising Making Furniture Designs Foam PVC MDF Cutting 4 Axis Acrylic Metal Carving Machinery." (Meta description: Get high-quality 3D Atc CNC Router Machines for wood carving, furniture design and more from our factory. Perfect for woodworking and advertising.)
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Application
  • Related Products
  • Company Profile
  • Certifications
  • Installation & Operation
  • Packaging & Shipping
Overview

Basic Info.

Model NO.
BCM1325C-4 AXIS
Spindle Number
Single-Spindle
Feed Mode
Manual
Controlling Mode
CNC
Certification
CE
Customized
Non-Customized
Condition
New
Color
Gray Green
After-sales Service
Onling Service
Table Surface
Vacuum Table +T-Slot Table
Motor and Driver
Japan Servo Motor and Driver
Spindle
Italian 9.6kw Atc Air Cooling Spindle
Spindle Speed
6000-24000 Rpm
Inverter
11kw Delta Inverter
Max. Rapid Travel Rate
X Y Axis Gear Transmission, Z Axis Tbi Ball Screw
Extraction
3.0kw Double Bags Dust Collector
Transport Package
Plywood Box
Specification
3280mm*2150mm*2200mm
Trademark
BCAMCNC
Origin
China, Shandong Province
Production Capacity
100 Pieces/ Month

Product Description

3d Atc cnc router machine for wood door carving woodworking advertising making furniture designs foam PVC MDF cutting 4 axis acrylic metal carving machinery


Product Description

4 Axic cnc router machine

1) Equipped with Italy HSD Electro spindle, It is one of the best spindles in the world, with after-sales service office around the world.

2) The rotation angle of the 4 axis cnc router machine is up to 180 degrees, specially designed for curve surface cabinet,doors and indoor decoration. and also for some mold prcessing.

3) Motor and driver use import original Japan Yaskawa servo motor, whcih can make sure machine high speed and big power.

4) Adopting Taiwan Syntec control system, professional industrial computer control system, it is easy to operate.

5) Adopting 10-12mm thick heavy duty body, it is more stable when the machine runns as high speed.

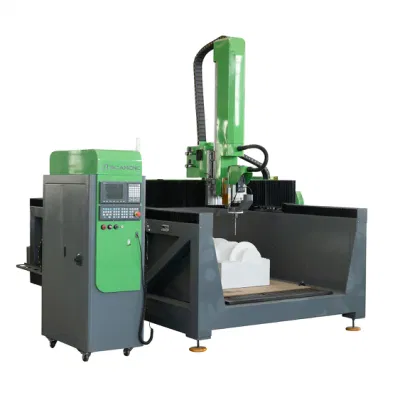

3D Atc CNC Router Machine for Wood Door Carving Woodworking Advertising Making Furniture Designs Foam PVC MDF Cutting 4 Axis Acrylic Metal Carving Machinery

X,Y,Z Working Area 1300*2500*200mm|4*8ft
Spindle Power 9.6kw Italy HSD Electro spindle
X,Y,Z Traveling Positioning Accuracy ±0.02/2000mm
Table Surface Vacuum table+T-solt table
X,Y,Z Rail and Transmission Helical rack and pinion transmission for X and Y axis; Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate 80m/min
Max. Working Speed 60m/min
Cutting thickness According materials
Spindle Speed 6000-24000RPM
Drive Motors Stepper motor and drivers
Working Voltage 380V(220v)/3 phase/28amp or 220v/ Single Phase/32amp,50Hz or 60Hz
Command Language G Code
G Code Syntec control system
Interface USB
Software Compatibility Option:VCarve/VCarve Pro/ArtCAM/UCANCAM,etc.
Running Environment Temperature: -20ºC~45ºC Relative Humidity: 5%~75%



Detailed Photos

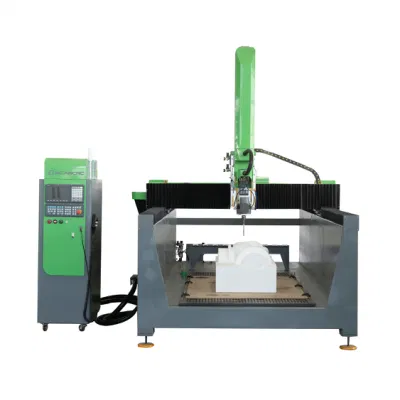

3D Atc CNC Router Machine for Wood Door Carving Woodworking Advertising Making Furniture Designs Foam PVC MDF Cutting 4 Axis Acrylic Metal Carving Machinery
Syntec control system
The control system of BCM1325C-4AXIS adopts the more advanced Taiwan Syntec system, which is widely acclaimed internationally and can perfectly control 3axis, 4, 5, 6, 8axis. The Syntec system can work online and WiFi links, greatly increasing theintelligence
of the device.















Japan YASKAWA Servo motor and driver

The world-class servo motor and driver ,with good stability and accuracy and high speed .
Automatic Tool changer

Equipped with 8 position carousel toolc changer, which effectively improves the tool change speed. BCM-4AXIS series is a CMC company designed to automatically change the tool cnc router, this series will be more automated than
manual tool change series, eliminating the cumbersome manual tool change, while making cnc router engraving more precise.











Air cooling atc spindle:

Italy HSD Electro spindle, and rotation angle up to 180 degress. BCM-4AXIS has a spindle rotation angle of up to 270, making the BCM 4 axis more suitable for complex processes such as side punching.

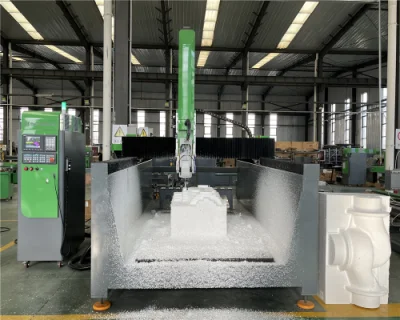

3D Atc CNC Router Machine for Wood Door Carving Woodworking Advertising Making Furniture Designs Foam PVC MDF Cutting 4 Axis Acrylic Metal Carving Machinery

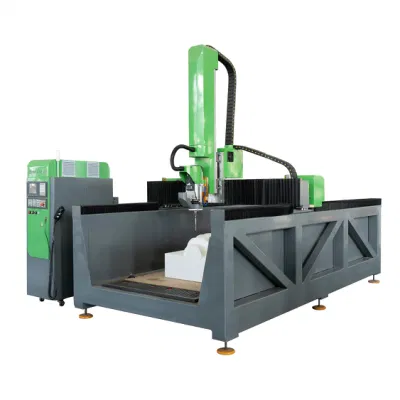

3D Atc CNC Router Machine for Wood Door Carving Woodworking Advertising Making Furniture Designs Foam PVC MDF Cutting 4 Axis Acrylic Metal Carving Machinery
Active safety system

Machine will stop working immediately when person touch active safety system. Providing external emergency stop function for equipment users, can effectively protect the personal safety of the equipment users, meet the European safety CE standards

3D Atc CNC Router Machine for Wood Door Carving Woodworking Advertising Making Furniture Designs Foam PVC MDF Cutting 4 Axis Acrylic Metal Carving Machinery

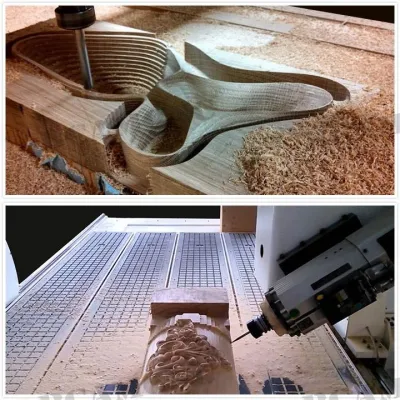

Application

The Automatic 3d woodworking machine cnc router 4 axis and 5 axis with CE can be widely used:

>>Applicable Material:
Acrylics, artificial stones, artificial marble, woods, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.

>>Applicable Industry:
Woodworking industry:
Chair, door, window, bed, cabinet, kitchen ware and other furniture; Redwood classical and antique furniture, Exquisite European furniture, decorative products sculpture.

Artwork &Decoration Industry: Wood crafts, gift box, jewelry box and other exquisite art crafts

Music Industry: Musical instruments; Loudspeaker box

Mold Industry: Engraving copper, aluminum, and other metal molds;Building models, shoes, badge, embossed mould, biscuit, candy, chocolate mould; Artificial marble, plastic sheeting, PVC, wood, foam and other non-metallic mold.

Advertising Industry: Billboard, signage, badges, logo, company plate, signs, emblem, badge, display panels, fair signs, building numbers, signs of decoration, literal hole cutting etc.; 3D character cutting, acrylic cutting, LED/neon channel, light-box; Electronic Industry: Circuit board; Insulation material.

3D Atc CNC Router Machine for Wood Door Carving Woodworking Advertising Making Furniture Designs Foam PVC MDF Cutting 4 Axis Acrylic Metal Carving Machinery



Related Products




3D Atc CNC Router Machine for Wood Door Carving Woodworking Advertising Making Furniture Designs Foam PVC MDF Cutting 4 Axis Acrylic Metal Carving Machinery
3D Atc CNC Router Machine for Wood Door Carving Woodworking Advertising Making Furniture Designs Foam PVC MDF Cutting 4 Axis Acrylic Metal Carving Machinery

Company Profile

Jinan BCAMCNC Machinery Co., Ltd., established in 2002, specializing in CNC machinery with rich experience!The company has two factories: CNC Router and laser machine factories and plants.
BCAMCNC is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficienct CNC machines worldwide. With a strong staff team, "Brand BCAMCNC" gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.
"BCAMCNC Products are widely used in the fields of advertising, furniture, jewelry pieces, gifts, packaging etc., materials of metal, wood, stone, leather etc."BCAMCNC"is wellknown not only in China, but also in Russia, Southeast Asia, Middle East, Africa, the Americas, India and other foreign countries.
BCAMCNC has already established branches in Shanghai , Dongguan, as well as foreign countries, such as Armenia , UK and Georgia. This year, BCAMCNC established long-term cooperative relationship with internationally renowned company, Shanghai Bcamtech CO.,LTD
. In addition, we have established long-term cooperative relations in the field of laser machines with BCMTECH to develop CNC solution .
BCAMCNC always adhere to the principle --- First class reputation, first-class service and excellent products.

By Global High-Tech CNC Equipment Supplier---BCAMCNC


3D Atc CNC Router Machine for Wood Door Carving Woodworking Advertising Making Furniture Designs Foam PVC MDF Cutting 4 Axis Acrylic Metal Carving Machinery


Certifications

3D Atc CNC Router Machine for Wood Door Carving Woodworking Advertising Making Furniture Designs Foam PVC MDF Cutting 4 Axis Acrylic Metal Carving Machinery



Installation & Operation

1. Machine has been adjusted before delivery.

2.English software, user manual and detailed installation & training Videos DVD for 3d woodworking cnc router will be send to clients together with machine

3.24 months guarantee of the whole Heavy duty 3 axis 3d CNC Router.

4.Main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.

5.Lifetime technical service.

6.We will provide the consumable parts at an agency price when you need replacement.

7.Our staff can be sent to your company to install or adjust if necessary.

3D Atc CNC Router Machine for Wood Door Carving Woodworking Advertising Making Furniture Designs Foam PVC MDF Cutting 4 Axis Acrylic Metal Carving Machinery



Packaging & Shipping

*When machine is finished, we will provide testing video to customer for check. everything is ok, we will arrange packing.

*Firstly use the plastic film to cover the machine and add desiccant, prevent the machine from rusting in the sea shipping for a long time.

*Then fixed the plywood box, the plywood case is with fumigation-free, its compressive strength and bearing quality is better.


3D Atc CNC Router Machine for Wood Door Carving Woodworking Advertising Making Furniture Designs Foam PVC MDF Cutting 4 Axis Acrylic Metal Carving Machinery






FAQ
Q1: What machine suits me best?

A: First of all, please tell us what material you want to cut or engrave and what is the maximum size? Then we will recommend the most suitable model and the best price for you.

Q2: What should I do if the machine fails during warranty period?
A: Just contact us----our sales are online for 24-hours .Replacement of damaged parts for free.There is a 12 months warranty.

Q3: Are you trading company or manufacturer?
A: We are a factory direct sale, can guarantee you got the best product at the best price.All the products have CE, ISO certifications, tested well before delivery.

Q4: How long is your delivery time?
A:Generally it is a weekday if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to our quantity.

Q5: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.

Q6: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Q7: What's your MOQ?
A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.
