CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass

Looking for a CNC Glass Working Center Machine for mirror and furniture glass processing? Our factory offers top-quality glass processing machines.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • Product Description
  • Detailed Photos
  • Relevant Products
  • Company Profile
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
GC-CNC-II
Voltage
380V
Key Words
CNC Glass Working Center
Function
Making Mirror and Decoration Glass
Max Glass Size
1500-3000m
Min Glsss Size
300-400mm
Gurantee
1 Year
Local Services
Offer
Tmeprture
100-160
Production Time
1 Year
Term
Fob/CIF/EXW
Transport Package
Plywood Pallet and Plastic Film
Specification
1500-3000MM
Trademark
WGM
Origin
China
HS Code
8464901900
Production Capacity
100 Sets/Year

Product Description


Product Parameters
Technical Parameter
Maximum size: 1200*2400mm
                              1500*3000mm
                        1900*3000mm
Minimum size: 250*250mm
Glass thickness: 4-30mm


Spindle power: 13KW
Spindle speed: 0-12000r.p.m
Movement speed: X.Y-axis 25m/min Z-axis 10m/min
Cutter tool magazine: 8*1
Total power: 22KW

Function Applicable cutter tools
Drilling, grinding and polishing, milling, engraving Milling cutter, drill bit, cylindrical wheel, seal carving pen
Standard Configuration
Host Structural welded steel, Co2 shielded welding, heat treated 1 set

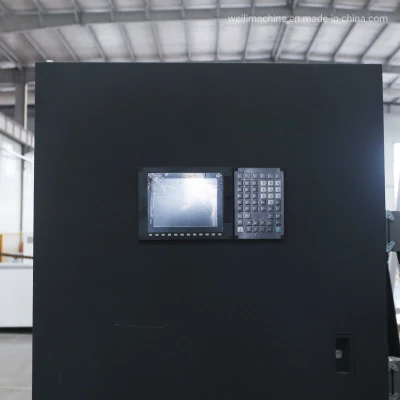

Control System Mitsubishi (Japan) 1 set
Servo Motor Mitsubishi (Japan) 4 sets
Spindle Frequency Converter Delta (Taiwan, China) 1 set
Low Voltage Electrical Components SCND (France) 1 set
Pneumatic Components AirTAC (Taiwan, China) 1 set
Spindle GLASS OEM manufactures exclusively for glass grinding.
Speed: 0-12000 rpm, Power: 13KW
1 set
Software Glass-EasyCAD/CAM 1 set
Water Pump Stell (Taiwan, China) 1 set
Water Ring Vacuum Pump China 1 set
Linear Guides HIWIN (Taiwan, China) 1 set
Ball screw HIWIN (Taiwan, China) 1 set
Automatic Lubrication System China 1 set

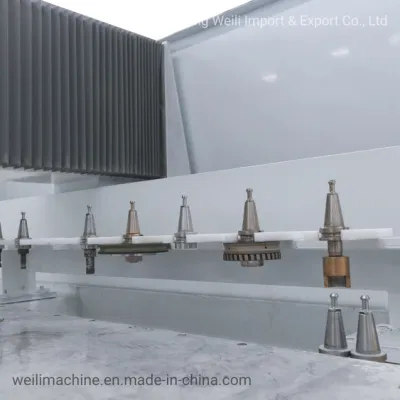

Cutter Tool Magazine 8-bit automatic cutter tool changer 1 set
Working Desk Aluminum alloy 1 set
Water Tank Stainless steel + plastic case 2 sets + 1 set
Cutter Handle BT40 [with positioning cutter holder] 8 pieces
Sucker Φ135mm 4 pieces
Sucker Φ165mm 4 pieces
Positioning Post Φ20mm 6 pieces

Product Description
GC-CNC-II is a high-tech machining center, which can complete complex machining processes in a short time and meet high quality requirements.
The machining center adopts a digital control system to achieve dynamic management of each axis and precise speed control, so as to achieve the most accurate external dimensions and the best product quality. The flexibility of the control system meets the needs of different products, and the entire processing process is completed automatically without human intervention. GC-CNC-II combines the characteristics of various CNC glass processing machine tools in the world today, and the perfect combination of digital control and PC systems realizes the machine is highly automated and managed, suitable for mass production of high-precision glass deep-processing products. It enables customers to achieve the optimal production configuration with the smallest investment.
Detailed Photos
CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass
CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass

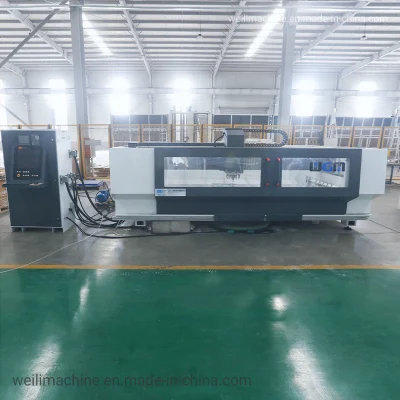

GC-CNC-II is an open-top structure, which is convenient for glass loading and unloading operations, the movable bridge is welded structural steel, and the X-axis transmission mechanism is installed on the movable bridge.
The three linear axes X, Y and Z are driven by high-precision ball screws and slide on linear square guides.
The Y axis and the Y1 axis are synchronous axes, and servo motors, ball screws and linear guide rails are installed on both sides.


CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass

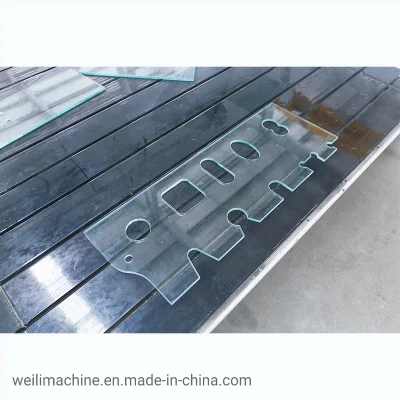

The material of the worktop is hard aluminum alloy.
GLASS's engineers designed two sets of air source workstations at the front end of the workbench. Each set of workstations is equipped with relevant compressed air pipelines and vacuum pipelines, which can facilitate workers to load and unload glass sheet, and position before processing glass.

CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture GlassCNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass

Relevant Products
CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass
CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass
CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass

CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass
CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass
CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass



Company Profile
Jinan Weili Machine Co.,Ltd is in the service of construction glass and glass industries. It is mainly specialized in producing door-window of energy conservation insulated glass production line of curtain wall, and glass deep-processing equipment.

Since the company established from 2001, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipment. The products sell well at home and abroad, and some were exported to Europe, Africa, Middle east, Southeast Asia and more than 50 countries and areas.
CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass

CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass


CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass
CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass
CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass
We have lots of old customers and agency in the whole world.
Every year,we will attend the exhibitions to show our machine to friends,
We attend China,Turkey,Germany,Dubai and ect,,,
We improve our machine every year and show it in ehixbition,
The pic:
It is our sale group.
The girls are our international business group ,we servces for the whole country customer expect China,
The man are our China sale business group~


CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass

Packaging & Shipping



CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass
CNC Glass Working Center Machine Glass Processing Machine for Mirror and Furniture Glass


1.Machine packing with plastic film and plywood pallet for necessary parts.
2.Packing with wooden box according to customers' requirements.

FAQ

1.Question:Are you a manufacturer?
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 21-years history since 2001.

2.Question: How about the service ?
Answer:
1).Timely reply it at once on WhatsAPP and Email.
2).18 hours online for after-sale service
4).more than 21 years experience in this kind machine field
5).fluent English ,communication barrier free. Point-to-point service help you solve the problems timely.

3.Question:What's the guarantee ?
Answer:
1). Our guarantee for 12 months.
2). 18 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.

4. Q: Do you provide equipment operation training?
Answer:
A: Based on the situation stable and policy allowed, we can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.

5.Question:Why your price isn't the lowest price compared with others company or factories ?
Answer:
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our insulating glass machine, likes auto gas filling machine, auto loading machine and etc.
2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is satisfactory. We have a good reputation in our customers.
