China Automatic CNC PVC Foam Board /Kt Board Cutting Machine for Blade Cutter

Get precise cuts with our China Automatic CNC PVC Foam Board /Kt Board Cutting Machine for Blade Cutter. Factory direct pricing available. Order now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
YC-1630A
Power Source
Electric
Layout
Horizontal
Maxi Cutting Speed
1200mm/S
Translational Velocity
1500mm/S
Transmission Interface
Ethernet
Motor
Servo Motor
Fixed Mode
Vacuum Absorb
Transport Package
Wooden Case
Specification
3000*1600mm
Trademark
Yuchen
Origin
China
Production Capacity
50 Set Per Month

Product Description

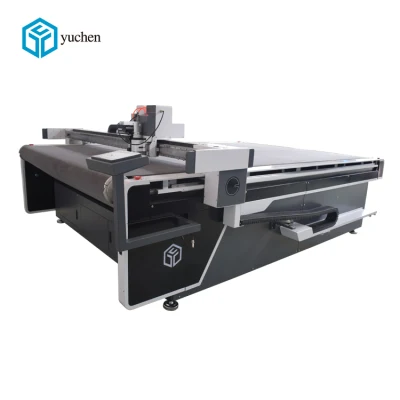

China automatic CNC pvc foam board /KT board cutting machine for blade cutter

China Automatic CNC PVC Foam Board /Kt Board Cutting Machine for Blade Cutter


Model: YC-1625A          Machine size can be customized
Brand: Yuchen
Applicable cutting materials:KT board, Corrugated cardboard, EPE, PVC, acrylic, thick foam, etc
Application: widely used in advertising industry.
Functions: cutting(oscillating cutting tool),
Optional cutting tool: the cutting tool is optional according to customer's requirements, such as oscillating cutting tool, kiss cut, creasing tool, milling, precise vision-aided position.
Features: Oscillating knife cutting, fast speed, high efficiency; saving material and labor, more convenient and easier to operate for user.


Parameter:
Model YC-1625A YC-1630A YC-1830A
Working area 2500×1600mm 3000×1600mm 3000×1800mm
Operation properties Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime

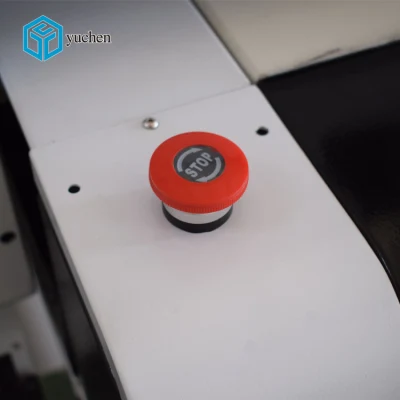

Safety device Infrared induction is used, sensitive response, safe and reliable
Maxi cutting speed 1200mm/s
Translational velocity 1500mm/s
Applicable materials KT board, Corrugated cardboard, EPE, PVC, acrylic, thick foam, etc

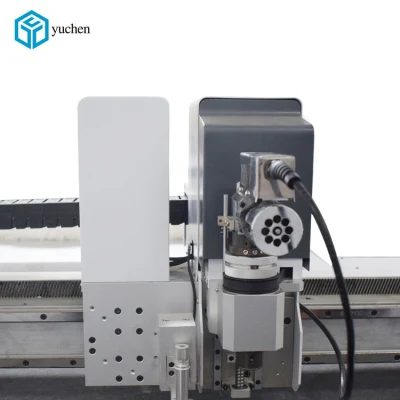

Multifunctional head oscillating cutting tool, kiss cut, creasing tool, milling, precise vision-aided position
Cutting thickness 0.1-10.0mm(subject to the material cutting)
Cutting tolerance ±0.1mm
Transmission interface Network transmission
Transmission system Motor:Panasonic
Linear rail:SMTYCC
Fixed mode Vacuum absorb
Supply voltage AC 220V 380V±10%,50HZ
Rated power 11KW

China Automatic CNC PVC Foam Board /Kt Board Cutting Machine for Blade Cutter
China Automatic CNC PVC Foam Board /Kt Board Cutting Machine for Blade Cutter
                                                               Sample Show
   China Automatic CNC PVC Foam Board /Kt Board Cutting Machine for Blade Cutter

China Automatic CNC PVC Foam Board /Kt Board Cutting Machine for Blade Cutter
China Automatic CNC PVC Foam Board /Kt Board Cutting Machine for Blade Cutter
China Automatic CNC PVC Foam Board /Kt Board Cutting Machine for Blade Cutter
China Automatic CNC PVC Foam Board /Kt Board Cutting Machine for Blade Cutter
China Automatic CNC PVC Foam Board /Kt Board Cutting Machine for Blade Cutter

China Automatic CNC PVC Foam Board /Kt Board Cutting Machine for Blade Cutter
